B-TEK Thermoplastic Preheaters
B-TEK thermoplastic preheaters melt, heat and mix thermoplastic material or bituminous joint sealing compound for application by the road marking machine. To ensure a continuous road marking process it is important to choose the proper size of preheater. This is done by calculating the material consumption of the road marking machine from the following factors:
• Speed of the machine in km/h,
• Marking amount per day,
• Mass of the road marking material calculated from the marking width, pattern, thickness and density of the thermoplastic material ρ ~2 kg/litre.
In general the total preheater volume must be a minimum of four times the tank capacity of the road marking machine. B-TEK provides a range of preheaters from 40 gallons to 100 gallons (182 litres to 455 litres) capacity.
The preheaters use Liquefied Petroleum Gas (LPG) to heat the thermoplastic material and provide high melting capacity.
B-TEK Truck and Trailer Mounted Equipment

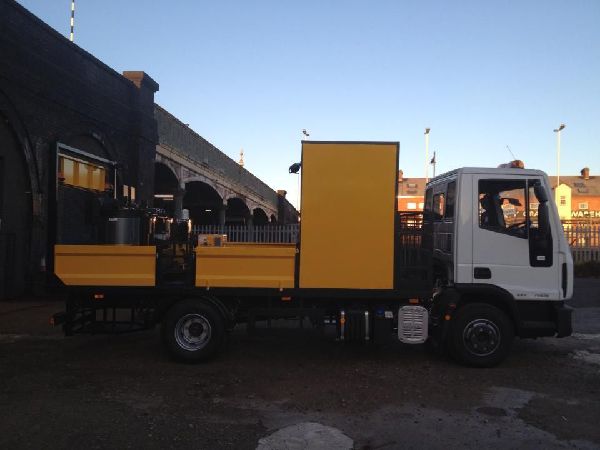

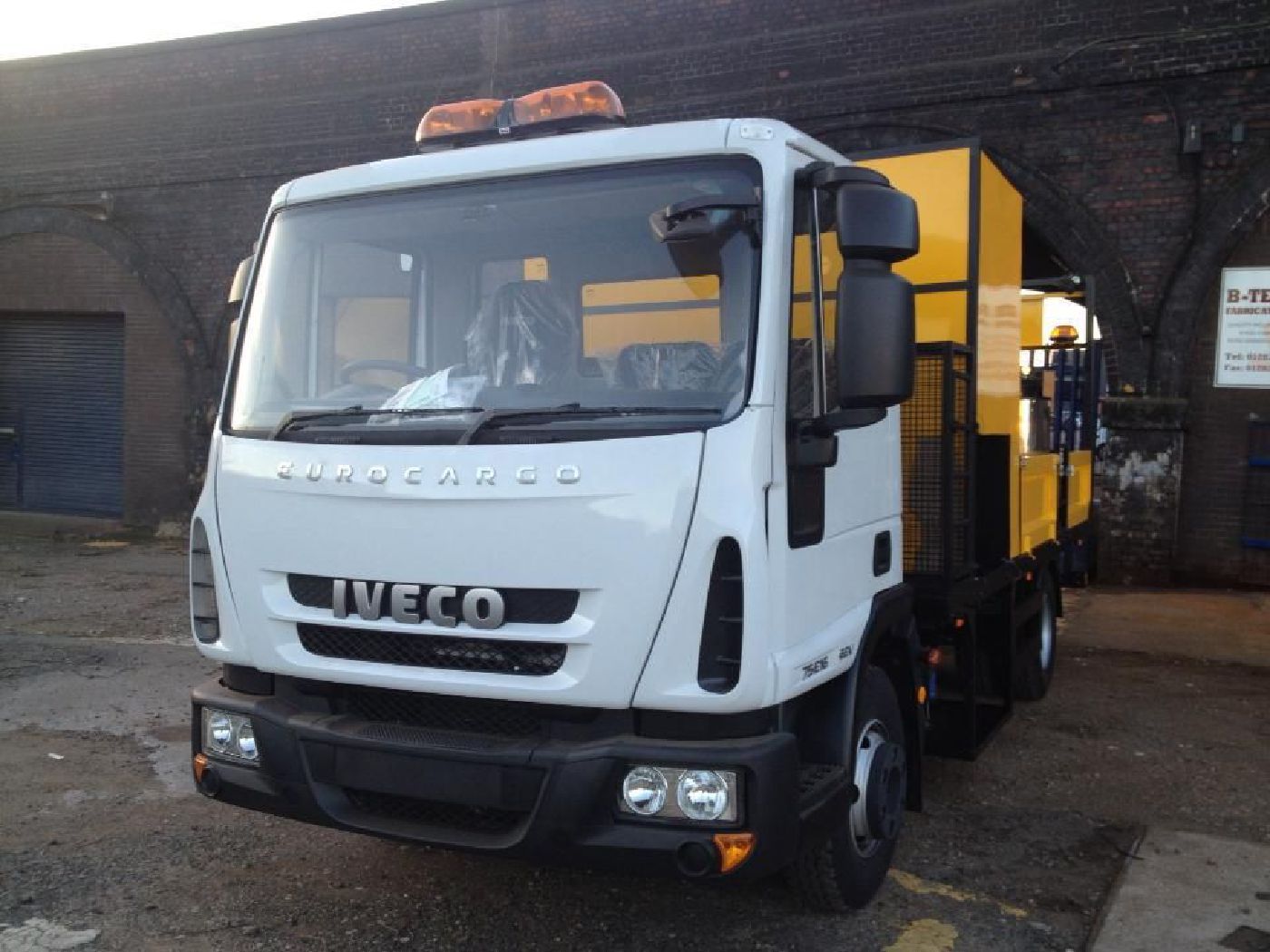

B-TEK truck and trailer transported road marking machines are specially designed to transport the equipment necessary to apply road marking for minor highway jobs.
The design is compact to minimise significant interruption to the traffic and get from one job to another quickly.

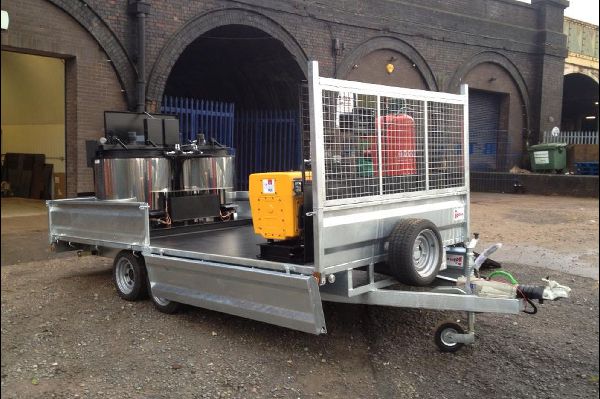

B-TEK machine trailers are tough, durable twin-axle type designed for safe transport with minimal maintenance requirements.
The road marking machinery and equipment is mounted on a separate platform of heavy duty, welded steel.
